Northman Cetop 5
Description
SWH-G03 Series Features
• Electrical connections are Hirschman DIN plug in connector. Indicating light plugs are standard.
• Electrical connection points are aligned with the axial direction to be compatible with modular systems.
• For ease of installation and repair, the mounting screws are on the outside of the body.
• Ability to sustain high pressure - 310 bar, allows for large flow rates to 120 lpm.
• The design of the flow passages minimises pressure drop.
• The 4 way, 4 land construction design reduces the flow force and system surging pressure.
• Can sustain back pressure to 160 bar.
• Comes with Hirschmann plug/s and single station bolt kit.
Specifications
Max. tank pressure - 160 bar
Max. freq. of operation - 240 cycles per minute.
|
Model |
Description |
Max. Flow lpm |
Max. Pressure bar |
|
SWH-G03-B*-*** |
Single solenoid, 2 position |
120 |
310 |
|
SWH-G03-C*B-*** |
Single solenoid, 2 position |
120 |
310 |
|
SWH-G03-C*-*** |
Double solenoid, 3 position |
120 |
310 |

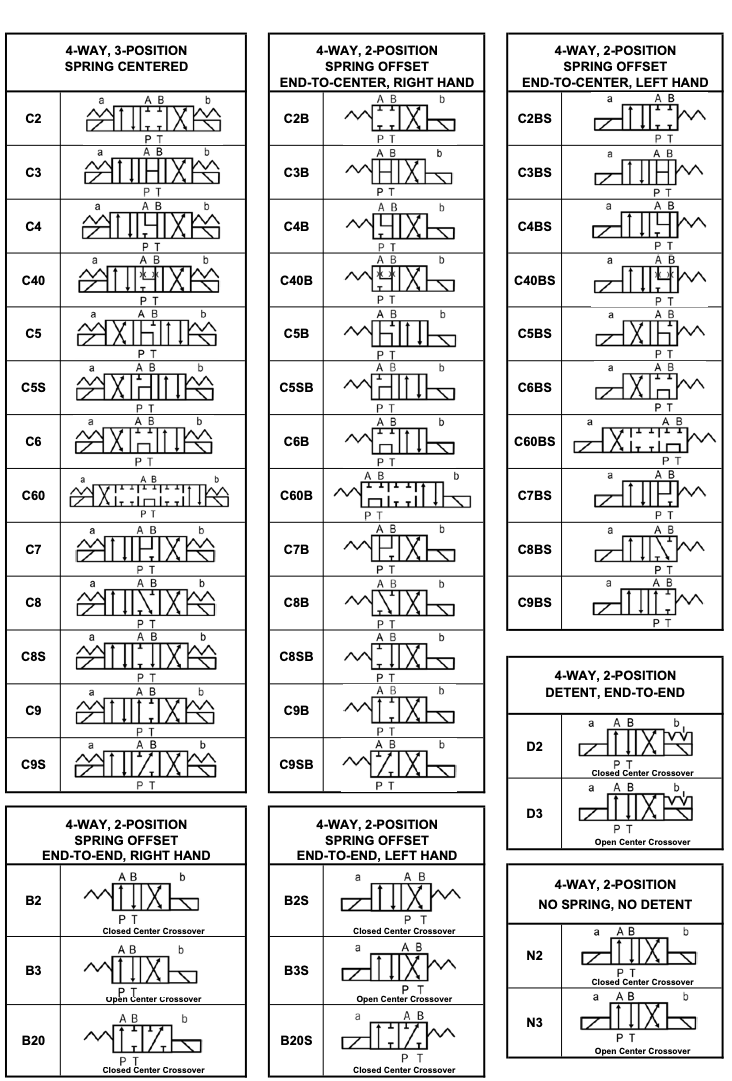

* - Spool number - Click here to view Northman Cetop spool types
*** - Solenoid voltage
|
Spare Components |
|
|
Model |
Description |
|
110VAC/60HZ coil |
|
|
240VAC/60HZ coil |
|
|
12VDC coil |
|
|
24VDC coil |
|
|
Hirschmann Plug DC |
|
|
Hirschmann Plug AC |
|
|
DIN rectifier plug with LED – 24V AC to DC |
|
|
Steel Sub-plate, 1/2” BSP, side ported |
|
Download the Northman Directional Control Valves brochure from here.
Downloads
| Code | Product Name | Price | Stock Availability | Quantity | Enquire |
|---|---|---|---|---|---|
|
SWH-G03-B2-A110
|
SWH-G03-B2-A110
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B2-A240
|
SWH-G03-B2-A240
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B2-D12
|
SWH-G03-B2-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B2-D24
|
SWH-G03-B2-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B2BS-D24
|
SWH-G03-B2BS-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B2S-A240
|
SWH-G03-B2S-A240
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B2S-D12
|
SWH-G03-B2S-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B2S-D24
|
SWH-G03-B2S-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B3-A110
|
SWH-G03-B3-A110
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B3-A240
|
SWH-G03-B3-A240
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B3-D12
|
SWH-G03-B3-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B3-D24
|
SWH-G03-B3-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
In Stock
|
|
|
|
SWH-G03-B3S-A240
|
SWH-G03-B3S-A240
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B3S-D12
|
SWH-G03-B3S-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B3S-D24
|
SWH-G03-B3S-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-B71S-D24
|
SWH-G03-B71S-D24
NORTHMAN CETOP 5 VALVE
|
$736.53
|
Call
|
|
|
|
SWH-G03-C2-A110
|
SWH-G03-C2-A110
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C2-A120
|
SWH-G03-C2-A120
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C2-A240
|
SWH-G03-C2-A240
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C2-D12
|
SWH-G03-C2-D12
NORTHMAN CETOP 5 VALVE
|
$566.07
|
In Stock
|
|
|
|
SWH-G03-C2-D24
|
SWH-G03-C2-D24
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C2-R240
|
SWH-G03-C2-R240
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C2-SPOOL
|
SWH-G03-C2-SPOOL
NORTHMAN CETOP 5 VALVE
|
$91.10
|
Call
|
|
|
|
SWH-G03-C2B-A240
|
SWH-G03-C2B-A240
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C2B-D12
|
SWH-G03-C2B-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C2B-D24
|
SWH-G03-C2B-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C2BS-A24
|
SWH-G03-C2BS-A24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C2BS-D12
|
SWH-G03-C2BS-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C2S-D24
|
SWH-G03-C2S-D24
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C3-A24
|
SWH-G03-C3-A24
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C3-A110
|
SWH-G03-C3-A110
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C3-A240
|
SWH-G03-C3-A240
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C3-D12
|
SWH-G03-C3-D12
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C3-D12-M
|
SWH-G03-C3-D12-M
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C3-D24
|
SWH-G03-C3-D24
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C3B-A240
|
SWH-G03-C3B-A240
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C3B-D12
|
SWH-G03-C3B-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
In Stock
|
|
|
|
SWH-G03-C3B-D24
|
SWH-G03-C3B-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C4-A110
|
SWH-G03-C4-A110
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C4-A240
|
SWH-G03-C4-A240
NORTHMAN CETOP 5 VALVE
|
$566.07
|
In Stock
|
|
|
|
SWH-G03-C4-D12
|
SWH-G03-C4-D12
NORTHMAN CETOP 5 VALVE
|
$566.07
|
In Stock
|
|
|
|
SWH-G03-C4-D24
|
SWH-G03-C4-D24
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C4-R240
|
SWH-G03-C4-R240
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C4B-A240
|
SWH-G03-C4B-A240
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C4B-D12
|
SWH-G03-C4B-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C4B-D24
|
SWH-G03-C4B-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C4BS-A24
|
SWH-G03-C4BS-A24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C4BS-D12
|
SWH-G03-C4BS-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C5B-A240
|
SWH-G03-C5B-A240
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C6-A110
|
SWH-G03-C6-A110
NORTHMAN CETOP 5 VALVE
|
$566.07
|
In Stock
|
|
|
|
SWH-G03-C6-A240
|
SWH-G03-C6-A240
NORTHMAN CETOP 5 VALVE
|
$566.07
|
In Stock
|
|
|
|
SWH-G03-C6-D12
|
SWH-G03-C6-D12
NORTHMAN CETOP 5 VALVE
|
$566.07
|
In Stock
|
|
|
|
SWH-G03-C6-D24
|
SWH-G03-C6-D24
NORTHMAN CETOP 5 VALVE
|
$566.07
|
In Stock
|
|
|
|
SWH-G03-C6B-A110
|
SWH-G03-C6B-A110
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C6B-A240
|
SWH-G03-C6B-A240
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C6B-D12
|
SWH-G03-C6B-D12
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C6B-D24
|
SWH-G03-C6B-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C6BS-D24
|
SWH-G03-C6BS-D24
NORTHMAN CETOP 5 VALVE
|
$454.12
|
Call
|
|
|
|
SWH-G03-C8-A240
|
SWH-G03-C8-A240
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
|
SWH-G03-C8S-D24
|
SWH-G03-C8S-D24
NORTHMAN CETOP 5 VALVE
|
$903.24
|
In Stock
|
|
|
|
SWH-G03-N2-A110
|
SWH-G03-N2-A110
NORTHMAN CETOP 5 VALVE
|
$566.07
|
Call
|
|
|
